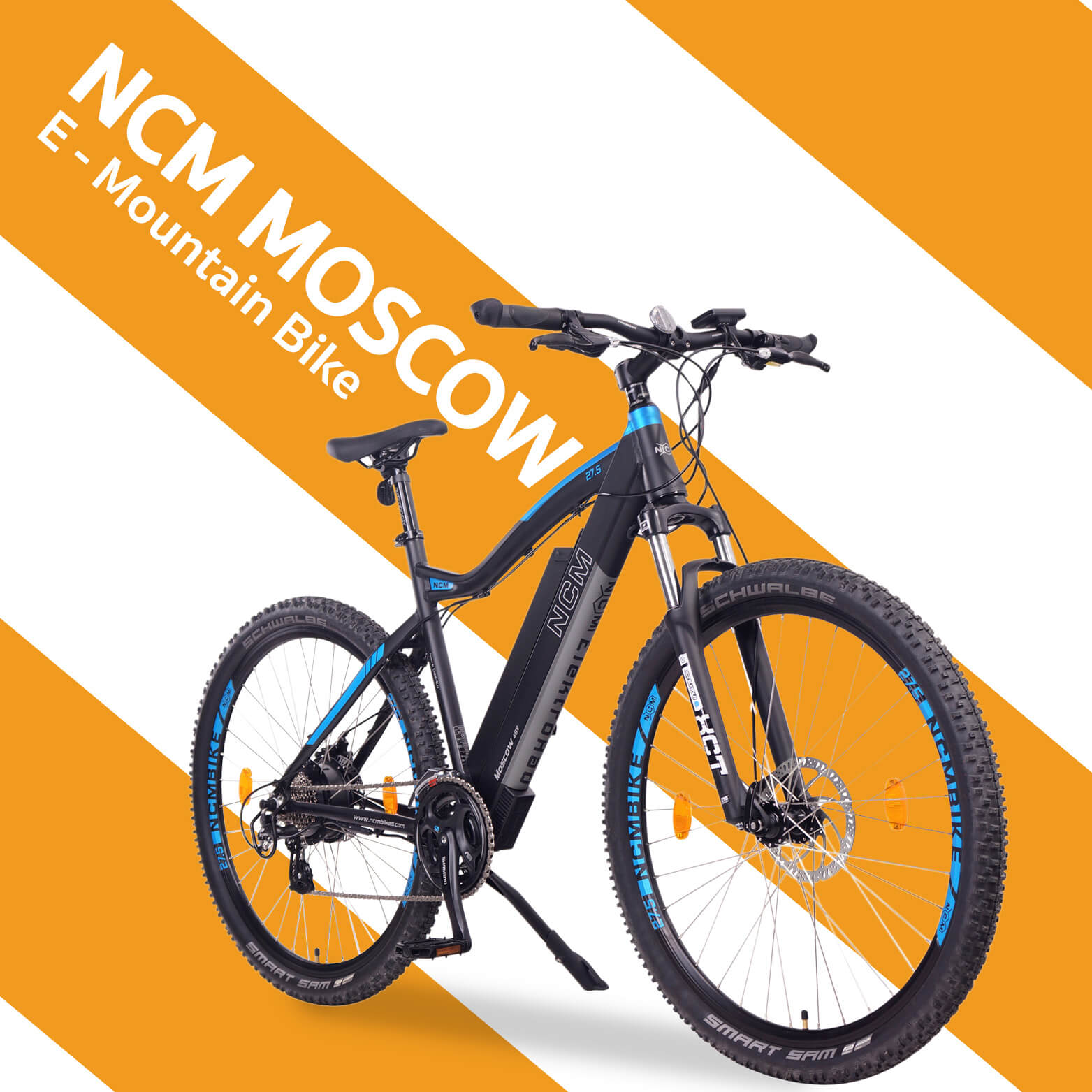

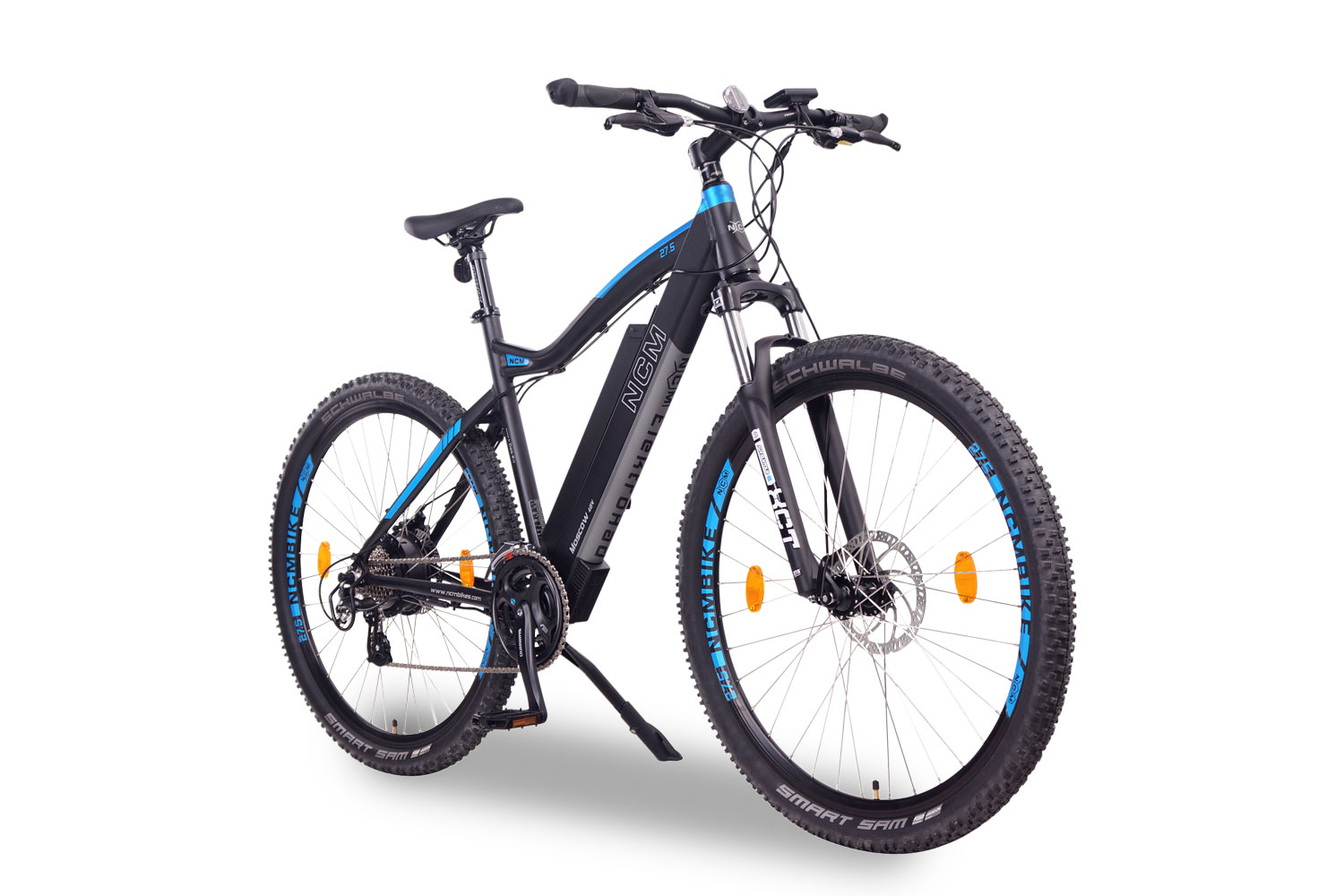

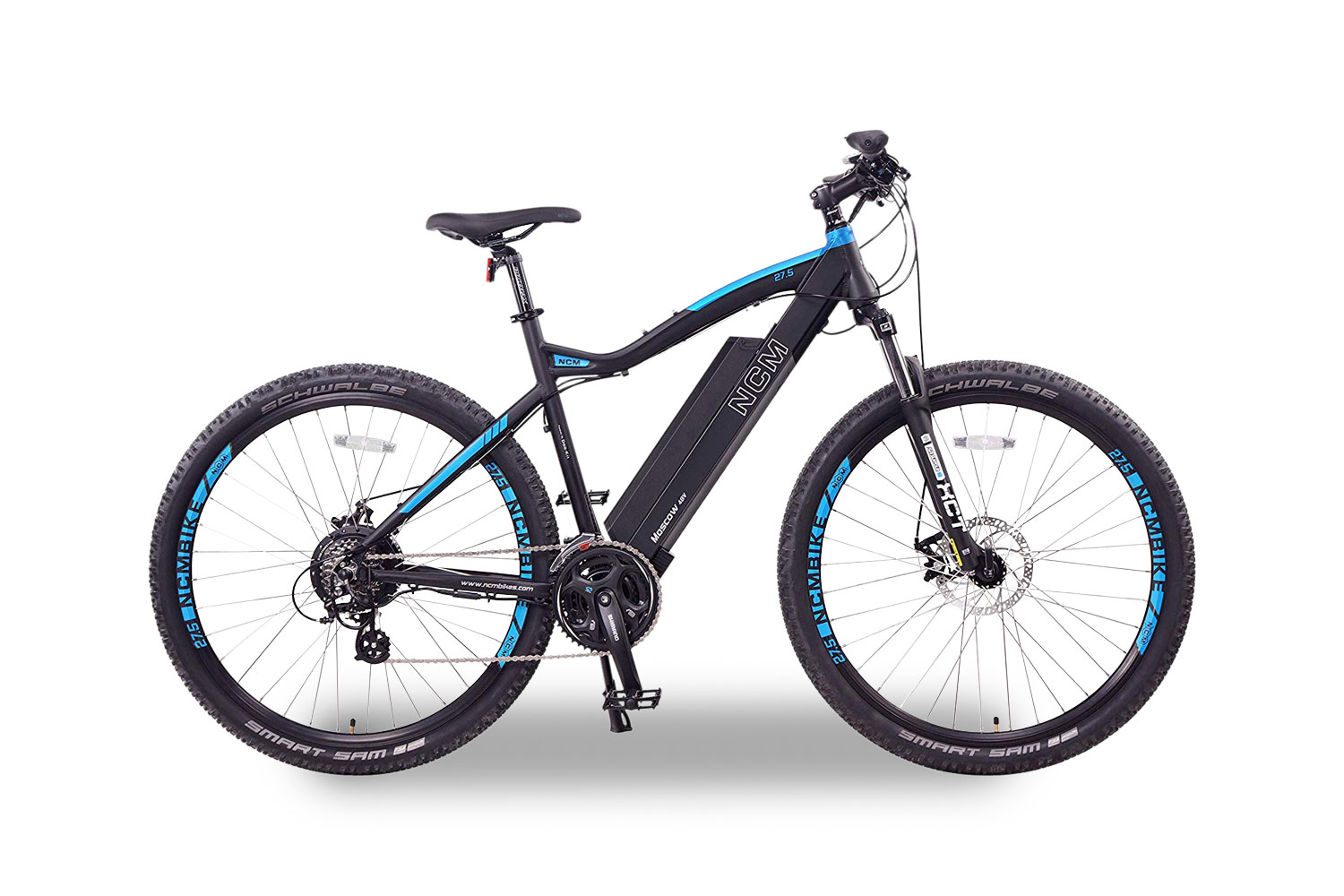

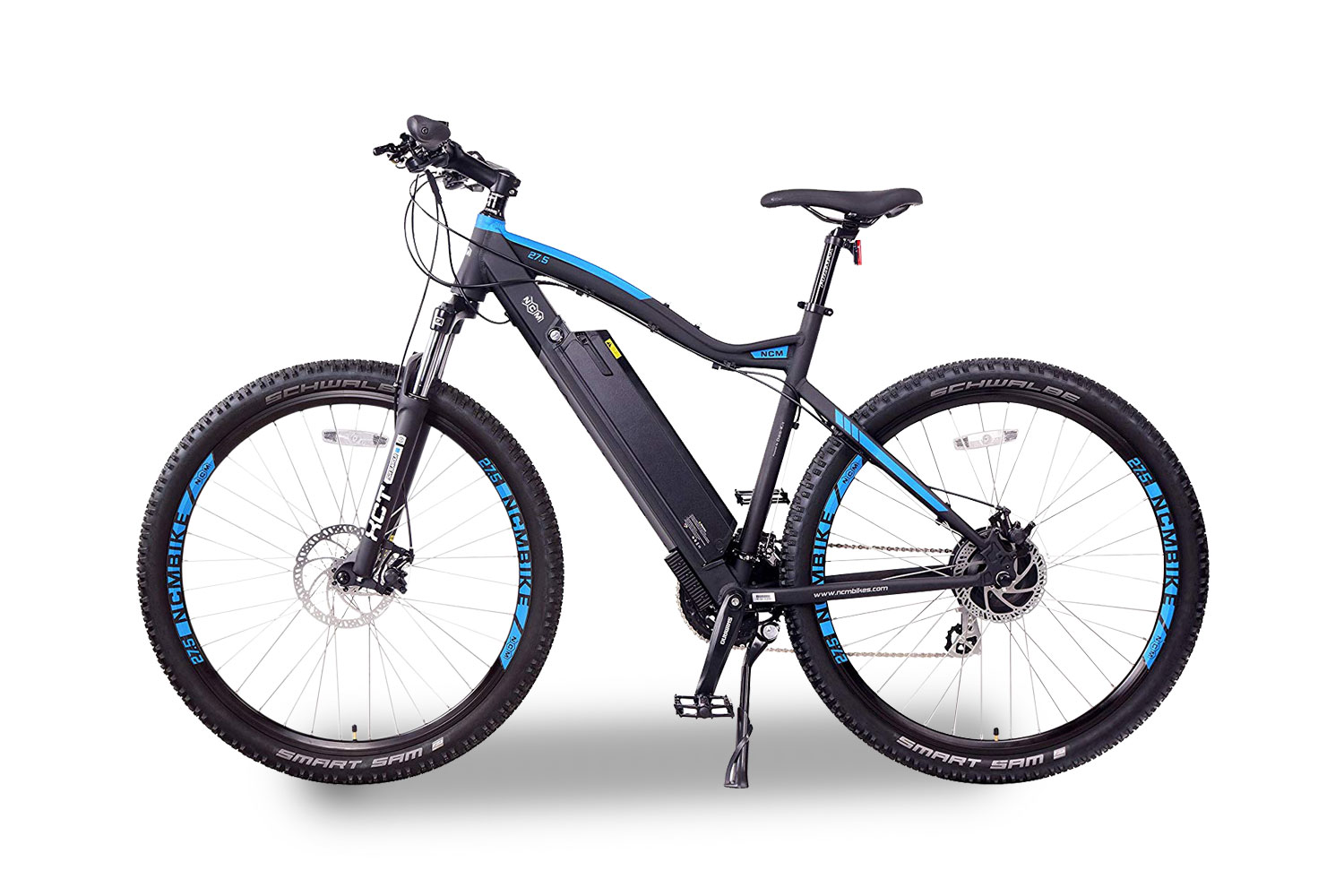

NCM Moscow 27.5'

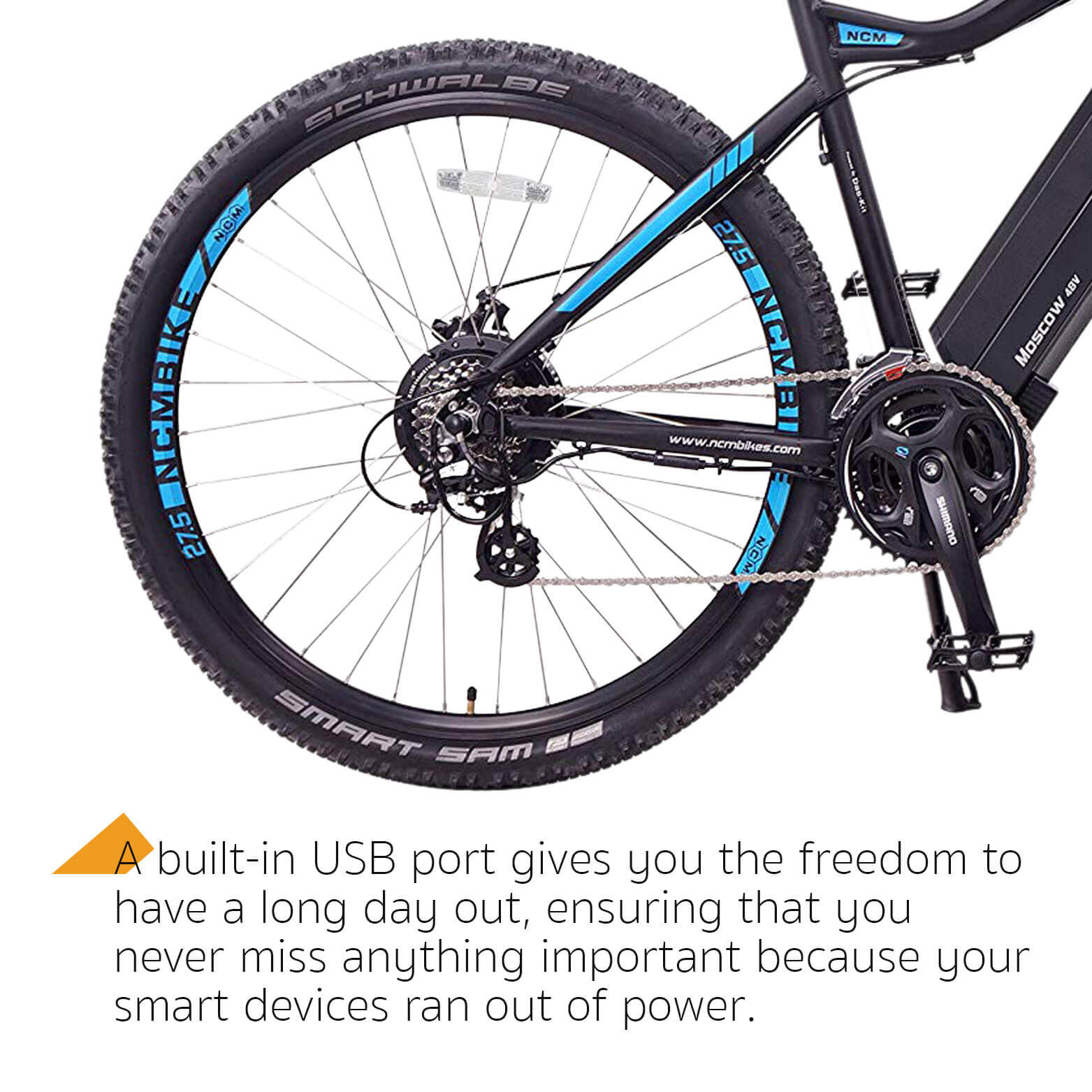

The NCM Moscow is an eBike designed to tackle all conditions. A powerful motor and high capacity battery make it great for commuting to work, long leisure rides or intense sessions in the great outdoors. Designed with durability, style and comfort in mind, it’s far more than its classification as an MTB. Great components from top cycling brands guarantee safety and a smooth ride. A built-in USB port gives you the freedom to have a long day out, ensuring that you never miss anything important because your smart devices ran out of power.

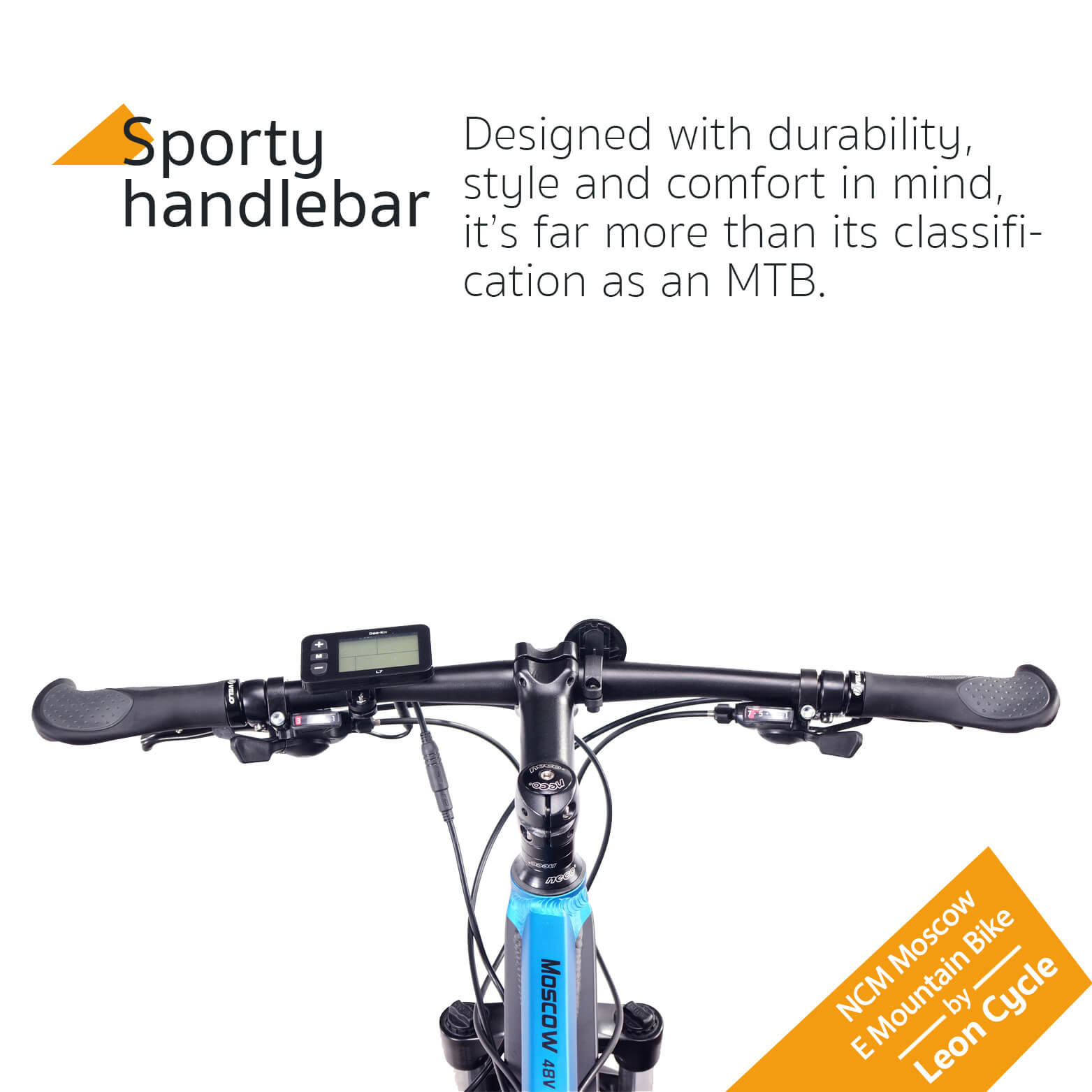

Sporty Handlebar & Strong DeHawk Battery:
- Ergonomic bicycle Grips
- Comfortable sitting posture
- Easy handling of the components
- Sporty bicycle handlebar
- All important controls easily accessible
- Supplied with 48V to deliver a high output power
- Over 600Wh capacity for a longer distance
- Reach up to 120km (depending on the conditions)
- Battery integrated in the frame for better aesthetics
- Easily removable battery so you can charge it anywhere
- A built-in USB port with 5V to charge mobile phones
Safe Braking Performance:
Front Brake: Reliable mechanical disc brake system. The 180 mm brake disc ensures powerful and safe braking at all speeds.
Rear Brake: Reliable mechanical disc brake system from Tektro. The 160 mm brake disc ensures powerful and safe braking at all speeds.

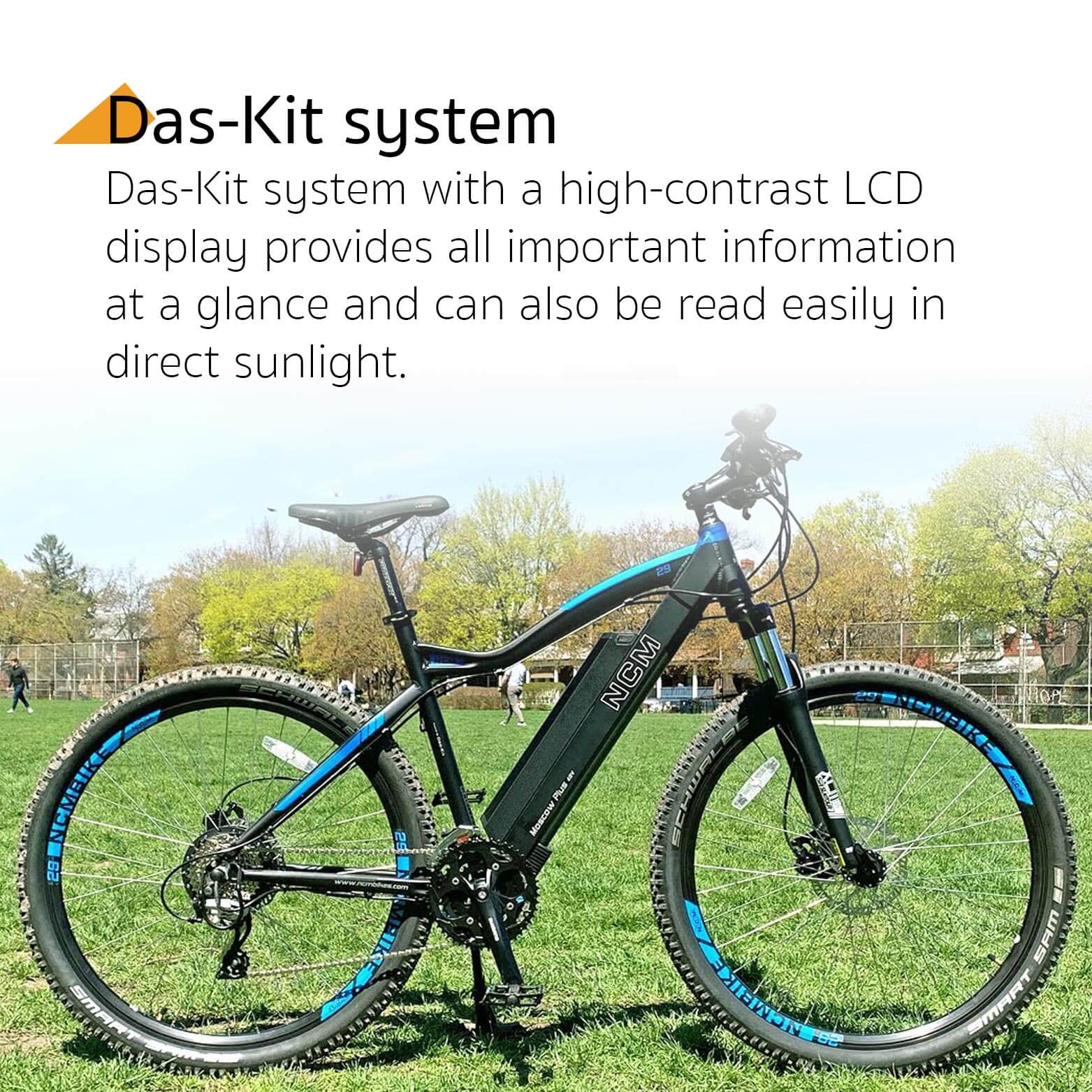

Das-Kit system with a high-contrast LCD display provides all important information at a glance and can also be read easily in direct sunlight. The LCD display gives good feedback, is extremely robust and easy to use.
The additional power can be individually controlled via six support levels.
It is protected against dirt and splash water.

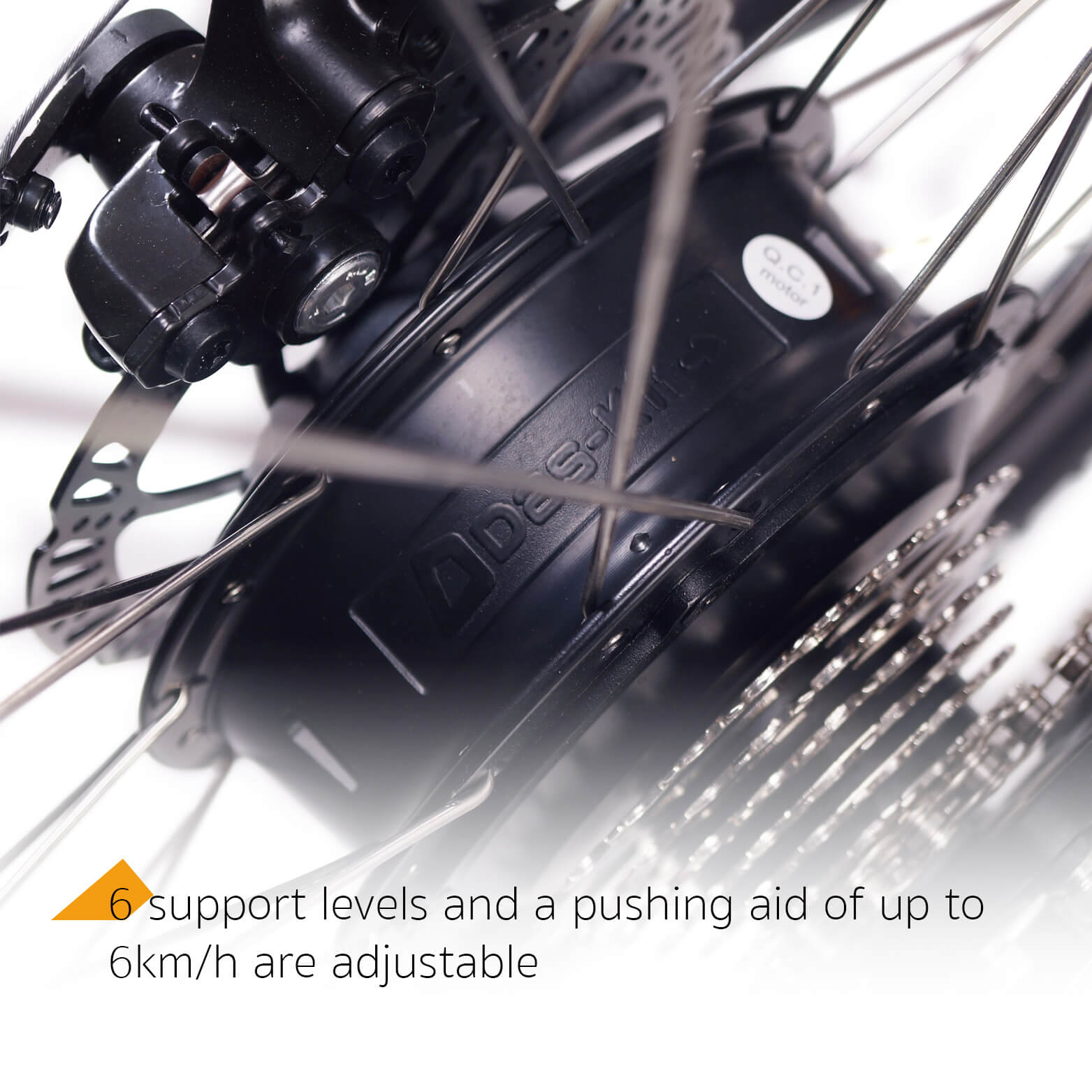

The rear engine delivers a full torque up to 55 Nm with 250W rated power and 48 V voltage.
A large display shows all necessary settings.
6 support levels and a pushing aid of up to 6km/h are adjustable.
The display's control buttons are deliberately placed on the left side - close to the left hand - so the driver can easily switch between support levels or displays without having to lift his hand off the handlebars.
NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality.. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through an friendly driving experience and the promotion of a fun and active lifestyle.
Weight: 27.5”= 28kg
Type: eMountain Bike
Wheel Size: 27.5”
Load Capacity: Max. 125kg
Maximum Speed: 25km/h
Display: Das-Kit, L7B, LCD, 6 Assistant levels, up to 4mp/h power assist walk
Controller: Das-Kit, CT5-I5, 48V 15A
Charger: Inclueded DC482AU 48V 2A with round plug
Motor: Das-Kit, X15, 48V 250W, 25km/h, rear motor wheel
Battery: i5-4813H, 48V 13Ah, 624Wh High Power Cells,
Li-NCM-18650 incl. USB port (charging mobile devices with 1A)
Distance approx. 40-120km depending on assistance level.
Front/Rear Light: Have to be purchased separately. Not included. Front/Rear reflector incl., cat’s eye
Frame: Aluminium 6061, 27,5“ 480MM
Fork: Suntour, XCT-27.5
Brake Lever: Tektro, with brake sensor on the right side
Brakes: F/R: Mechanical Tektro Disc Brakes
Crank: Shimano, Altus M311
Front Derailleur: Shimano, Altus
Rear Derailleur: Shimano, Altus
Tire: Schwalbe, SMART SAM 2.25
Saddle: VELO designed by NCM, Black
Seat Post: Promax
Grip: VELO, ergonomic, black/grey (synthetic)
Pedal: Wellgo. B087, black
Battery: Lithium-ion 12.5Ah / 48v / 600Wh
Charging: 6-7 hour charging time
Maximum Range: 120km (with pedals), 40km (highest power setting)
Top Speed: 25km/h
Motor Power: 250W
Maximum Incline: 20%
Vehicle Weight: 29kg
Maximum Payload: 125kg
included in box: The NCM Moscow eBike, Battery Charger, Toolkit, User Manual, Key Set
